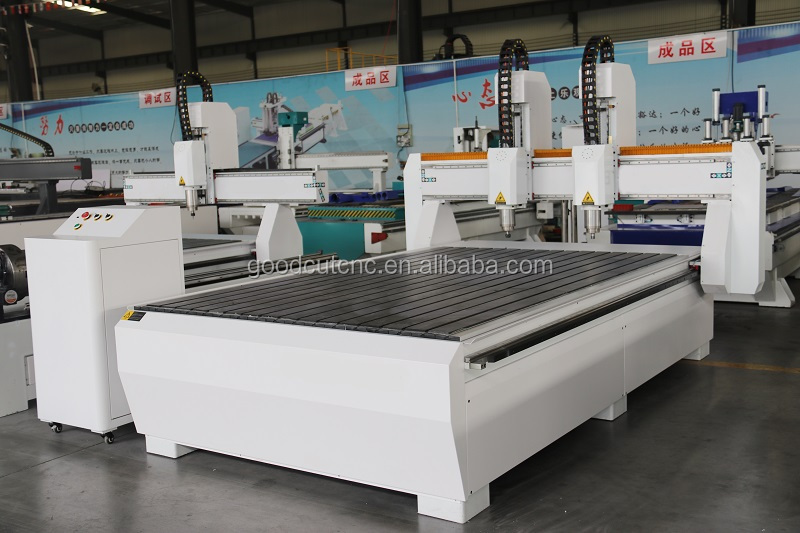

Descrição do produto Double 2 Spindles Heads mach3 controller cnc router 1525 woodworking Cutting MachineDouble 2 Spindles Heads mach3 controller cnc router 1525 woodworking Cutting Machine:Standard machine's specifications:
1) 1300*2500*200mm
2) 3.2kw water/3.5kw air cooling spindle
3) Aluminum T-slot table
4) Mach3 Nc-studio controller
5) Taiwan PMT 20 guide rail+20mm flange slider
6) Stepper motor&driver+UTECH patent type reducer
7) Fuling inverter
8) Leg Removable Frame
9) Double stop protection device
10) XY axis by Patent type reducer structure 1:4+450B transmission structure, Z axis by Taiwan TBI ball screw(Disc coupling direct connection.); XYX axis by JMC 860 driver.

Optional parts:
1) Working area could be customized
2) Servo motor&driver(hybrid or other brand servo)
3) Mach3/DSP or other controller
4) 5.5kw water cooled spindle/4.5kw/6kw air cooled spindle
5) Vacuum table
6) 4th axis Rotary
7) CCD camera
8) Oscillating knife
9) Auto tool changer
10) Water tank
11) Dust collecor Etc.

Warm remind: According to what kind of material/industry you mainly process, we can provide some solutions with you.
Performance characteristics of Double 2 Spindles Heads mach3 controller cnc router 1525 woodworking Cutting Machine:1. Reasonable configuration of aluminum table, power consumption is guaranteed, and good adsorption;
2. The unique double rack structure, each side of the tooth shaft in the rack drive shaft by one increase to two, to ensure that the machine in a long time to work and run smoothly, will not appear after a long time of carving and cutting carved square, carved round phenomenon;

3.Double motor drive woodworking carving machine speed is currently the fastest in China, double motor drive woodworking carving machine track all use linear square guide, long service life, high precision;Double motor driven woodworking engraving machine completely out of control, simple operation, completely out of the computer, so that the computer from bad environment;Dual motor driven woodworking engraving machine X-axis dustproof structure, avoid the machine in high speed movement is easy to enter the dust caused by track slide damage
* This machine is a professional CNC wood working machine.
* Whole body with steel structure, dual motor drive,high speed.
* High loading capacity, smooth operation.
* Imported ball screw linear guide rail , accurate engraving.
* Optional spindle are imported bearing,high speed Air cooling / Water coling spindle with stable performance.

Machine Parameters
Working Area	1300mm*2500mm*200mm
Working table	T-slot Table
Spindle	3.2kw water cooling spindle
Transmission	XY gears pinion.Z axis with 20mm ball screws
Guide rail	Taiwan HIWIN brand
Motor	Stepper motor
Machine body	Heavy steel structure, welding tempering aging,strong enough to avoid shape change
Max. Working speed	30m/min
Voltage	380v/50hz 3 phase
Weight	1000kg

Detailed Images for Double 2 Spindles Heads mach3 controller cnc router 1525 woodworking Cutting Machine:Gantry

The whole machine is welded with thick seamless steel structure, by seamless welding and hardening treatment, the stability is good, not easy to be deformed, guarantee it to be strong, reliable and durable, with large bearing capacity and long working life.. The machine adopts gantry movement, it can process any kinds of materials freely.Water cooling spindle
We adopts Super water cooling spindle. that is pretty famous brand in the World.(More power of spindle is optional). low noise constant power and long time working.
The air cooling high-power spindle is used to achieve precision higher, longer service life, uniform speed, running stable, rapidly change the necessary props at random, saving the machining time and enhancing the working efficiency. Fully programmable speeds from 6000 to 24000 RPMHeavy Duty Frame

The GoodCut's base frame is fabricated from heavy-duty tubular steel that is welded, precision machined and stress relieved so that the foundation remains true and steady over the operational life of the machine.MACH 3 Controller

Mach3 is designed to control the CNC machine. The program is installed on a computer connected to the control machine. Both for professional and amateur use, so it is the most common software for CNC machines in the world. Using Mach3, it is possible to control the following types of machines: turning, milling, routers, laser and plasma
plotter, engraving.

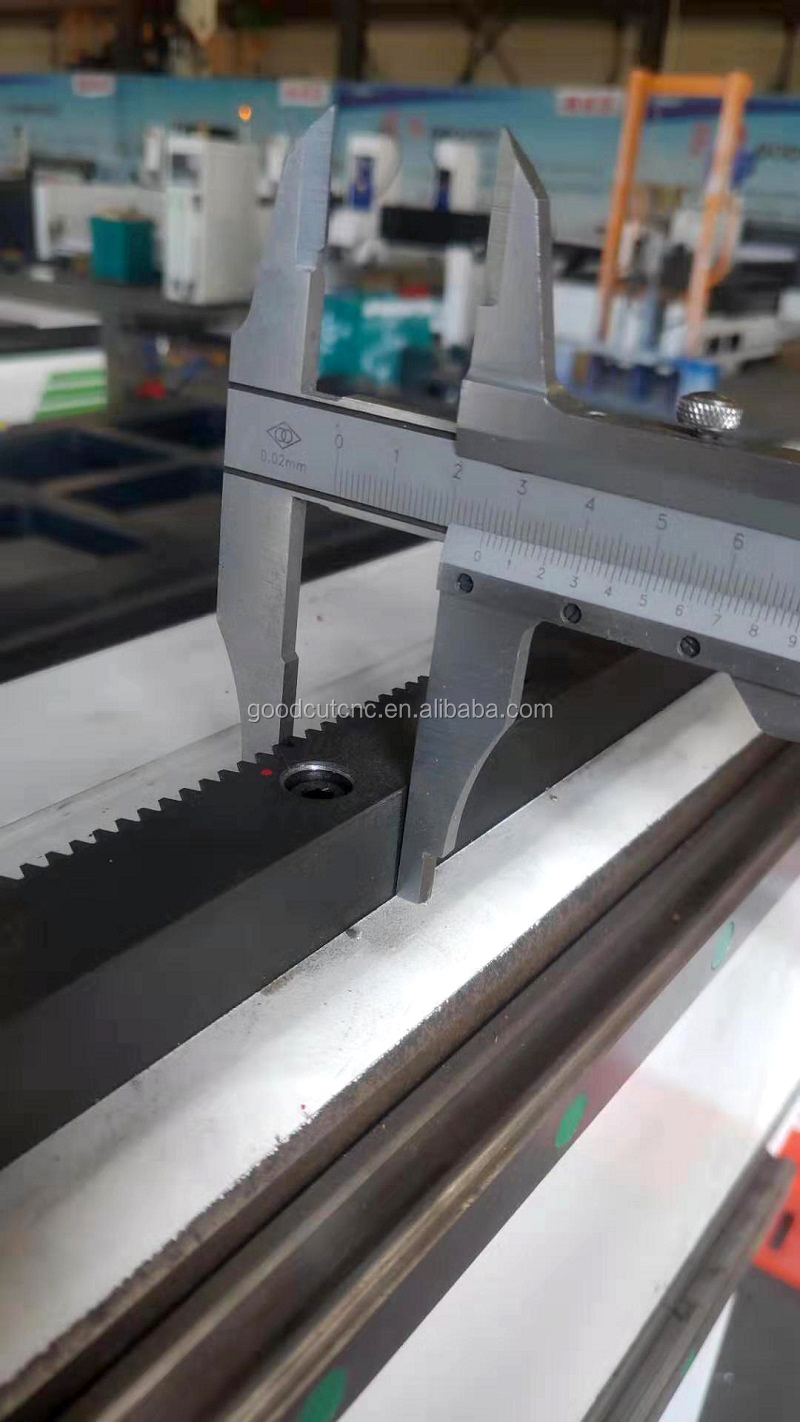

XY Helical rack and pinion

The CNC Router uses precision helical gear racks on the X and Y axes. The mounting of the rack is inverted to help keep dust and debris from building up on the drive system, this assures smooth motion and long term reliability. The precision gearbox is directly coupled to the stepper motor and pinion. This eliminates belt stretch inaccuracies assuring
high-speed machining while the system positions the spindle accurately.Z Axis TBI Ball screw

Z axis is with TBI ball screw to ensure the machine with higher precision and longer service life.Drive Motors

Adopt high speed Leadshine stepper /Leadshine servo motor and drivers,and two motors for Y axis.max speed is 25mm/min.Control Case
Independent control case, small interference for machine

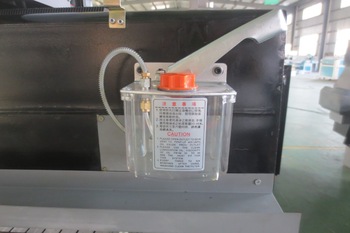

Oil Lubrication System

The machine comes the whole lubrication system to make sure all the transmission system will be well lubricated, which will make
the machine service life longer.Aluminum PVC T-slot table

Work table with "T" -slot for mechanical fastening. The working table of the machine is made of panels of special reinforced aluminum separated by grooves to accommodate the clamps. A frequent step in the placement of the grooves makes it possible to fasten the workpiece of almost any size and does not require additional manipulation. The surface of the table, in the processing area, is covered with a special protective layer of wear-resistant plastic. In the event of errors and passing the tool below the workpiece zero point, the protective layer keeps the tool and the table from damage.Special Dust Cover Design
Special dust cover design for protecting helical rack and pinion, long lifespan.
Other companys without this design
Orderly Wires
The wires of our machines are very orderly, the service lifetime is long, is not easy to break in the use process

Optional Parts:Vacuum Adsorb Table
Vacuum table with vacuum pump,can quickly and stably fix materials on the table for engraving,saving time and long service life. Adopting the international asvanced technology of vacuum adsorption mesa, equipped with the strongly vacuum pump, the six zones design can adsorb the different area of the material strongly.5.5kw/7.5kw Vacuum Pump
5.5kw/7.5kw dry Rotary Vane Vacuum Pump Comes standard with motor starter, vacuum gauge, primary and secondary filter, check valve and all necessary plumbing to connect to router.Air Cooling Spindle
We adopts Super air -cooling spindle. that is pretty famous brand in the World.(More power of spindle is optional). low noise constant power and long time working. The air cooling high-power spindle is used to achieve precision higher, longer service life, uniform speed, running stable, rapidly change the necessary props at random, saving the machining time and enhancing the working efficiency
Rotary Axis

GoodCut's 4-Axis rotary table assembly comes complete with a 3-jaw chuck, tail stock, and linear guide track for easy tail stock
movement and center alignment. The addition of GoodCut's 4-axis rotary table assembly adds greater functionality to the machine's
capabilities allowing for 4-axis cutting in both 2D and 3D carving and indexing functions.(GoodCut has 0-100mm, 0-150mm, 0-200mm,
0-250mm, 0-300mm diameter rotary axis for your choice)DSP Controller

DSP is a hand held, off line, and easy to operate controller. Not like Mach 3, it is no need to connect with a PC during the
machine working. It is easily operate and learned, especially for the freshman.Inverter
High quality Delta inverterOil mist Coolant System

The Oil mist Coolant System is ideal for coolant tools for cutting metal. The unit's microdispenser delivers a very small amount
of high-performance vegetable-based lubricant to the cutting tool by atomizing the lubricant in a high-velocity air stream. The result is higher material removal rates, improved finish, tighter tolerances and increased productivity.Dust collector

Big dust collector with 2 bags, which is powerful enough for collect the. It will make your workshop without dust.
Sample & Application1.Water cooling spindle,high precision,long life time,steady working,easy to start up.
2.thicken square pipe stucture ,well welded, no distortion for whole structure high precision ,and long life time.
3. Software:CAD/CAM designing software such as type3/artcam/castmate/weitai etc.
4. DSP controller system with USB interface,working without connecting with computer during working and easy to control.
5. Seperated control system makes operation easily.Quality control
1. In the processing of production, our professional technical engineers inspect the processing to ensure the quality of products

2. Every machine must be tested before delivery for 72 hours , all of them are absolutely qualified. Machine has been adjusted before delivery

3. 12 months guarantee of the whole machine.
Main parts(excluding the consumables) shall be changed free of charge if there is any problem
during the warranty period.
Lifetime maintenance free of charge.
We will provide the consumable parts at an agency price when you need replacement.Jinan GoodCut CNC Machinery Co.,Ltd.Our company is specialized in developing and manufacturing Mechanical CNC router (woodworking router, advertising router, stone engraving router), CNC Laser machine, Plasma cutting machine, cutting plotters, metal mould engraving machine and other cnc machines. We supply global market the high quality CNC equipments. We are leading company in this field and being confident in offerring the best service and best quality.
We have our own patented technology and research team, can provide you with professional and timely technical support. We are trustworthy.Candy Guan
