cnc wood drilling machine wood cutters for cnc board cutting machines

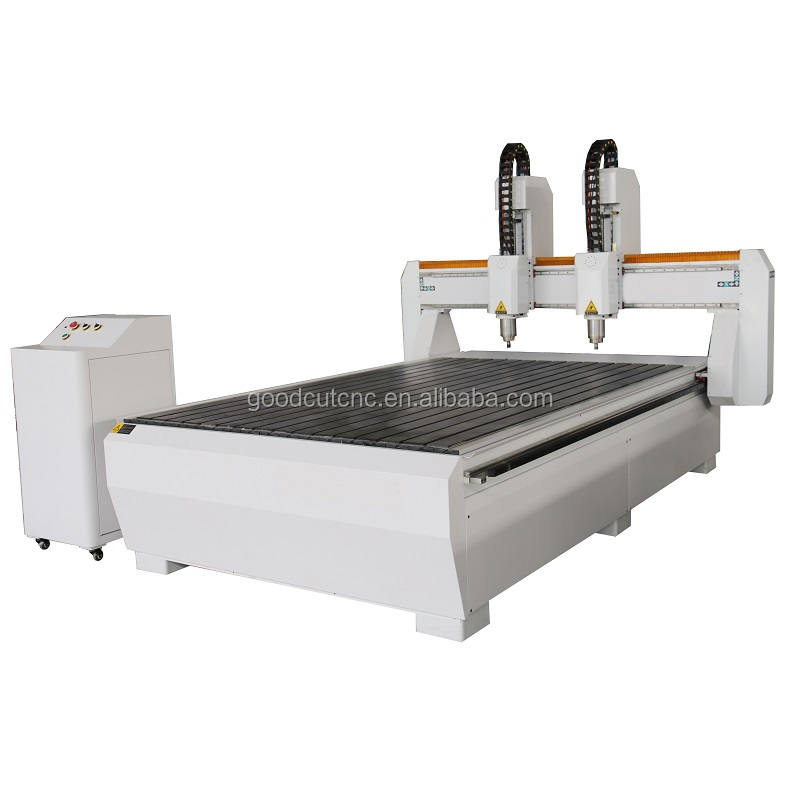

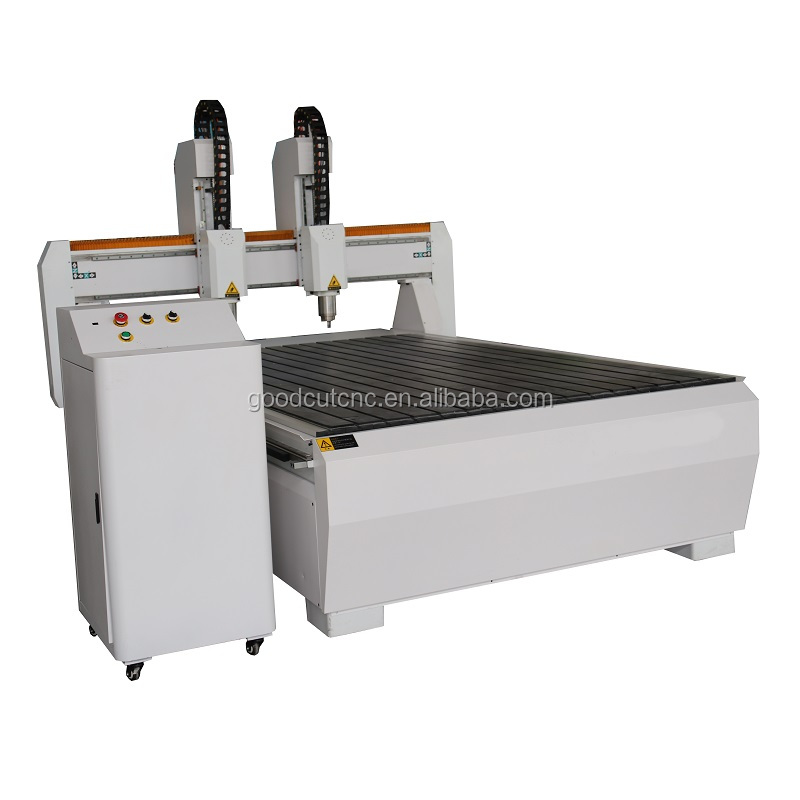

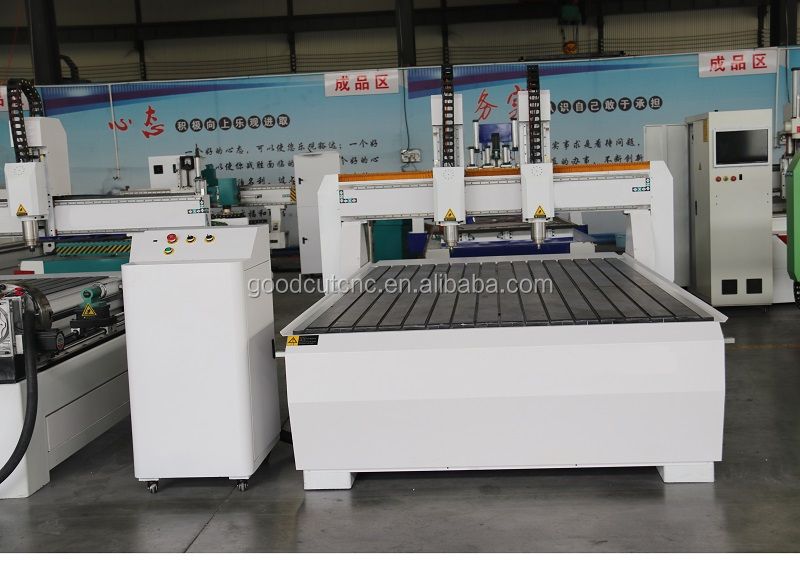

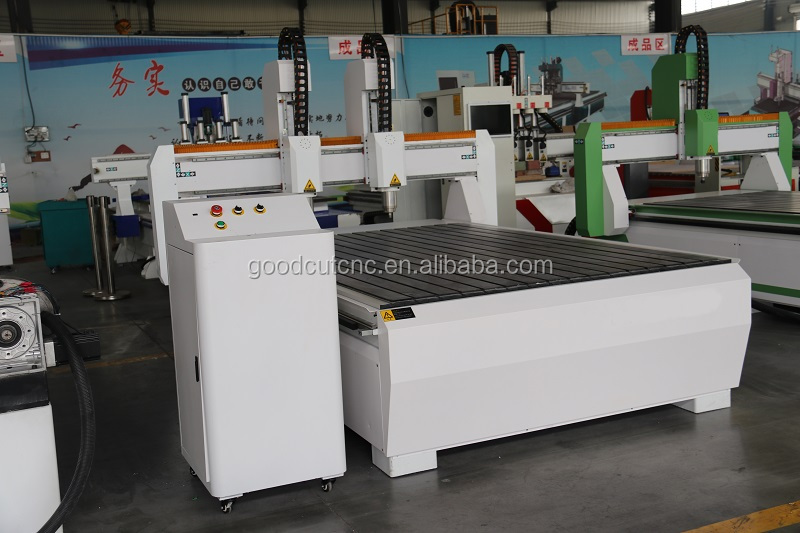

Feature of Double heads two spindles Low price controller for cnc woodworking cnc router 1325 machine:Standard machine's specifications:
1) 1300*2500*200mm
2) 3.2kw water/3.5kw air cooling spindle
3) Aluminum T-slot table
4) Mach3 Nc-studio controller
5) Taiwan PMT 20 guide rail+20mm flange slider
6) Stepper motor&driver+UTECH patent type reducer
7) Fuling inverter
8) Leg Removable Frame
9) Double stop protection device
10) XY axis by Patent type reducer structure 1:4+450B transmission structure, Z axis by Taiwan TBI ball screw(Disc coupling direct connection.); XYX axis by JMC 860 driver.
Optional parts:
1) Working area could be customized
2) Servo motor&driver(hybrid or other brand servo)
3) Mach3/DSP or other controller
4) 5.5kw water cooled spindle/4.5kw/6kw air cooled spindle
5) Vacuum table
6) 4th axis Rotary
7) CCD camera
8) Oscillating knife
9) Auto tool changer
10) Water tank
11) Dust collecor Etc.
Warm remind: According to what kind of material/industry you mainly process, we can provide some solutions with you.
Performance characteristics of Double heads two spindles Low price controller for cnc woodworking cnc router 1325 machine:1. GoodCut this model is one of classic and best selling cnc router, made of thickness square tube welded bed, imported square rail and high speeding stepper motor & driver. It can do cutting and engraving many materials, such as MDF, Acrylic, wood, PVC, etc. It's widely used in advertising and woodworking industries.
2. With China Well-known brands stepper motors and drivers, Hiwin linear guide rail, XY axis gear and rack transmission,Z axis TBI higher precision Ball Screws, ensure fast speed, big loading capacity, low noise, and longer time working.
3. Professional NC-Studio / Richauto Panel control system, Air cooling spindle 3.5KW or 6KW, long working life, low noise, strong cutting ability.
4.Vacuum and T-slot combined worktable can both absorb big materials by vacuum power and fix small materials by clamps.
5. Electronic control components from famous brand in China such as CHNT / DELIXI company.
6. Auto Oil-filling System for gularly maintenance (lubricating) is so convenient to use.
* This machine is a professional CNC wood working machine.
* Whole body with steel structure, dual motor drive,high speed.
* High loading capacity, smooth operation.
* Imported ball screw linear guide rail , accurate engraving.
* Optional spindle are imported bearing,high speed Air cooling / Water coling spindle with stable performance.
Parameters | GC1325 CNC Router |
X,Y,Z Working Area | 1300*2500*200mm |
Spindle | 3.2kw water cooling spindle |
X,Y,Z Traveling Positioning Accuracy | ±0.01/2000mm |
Table | T-slot table |
X,Y,Z Rail and Transmission | Taiwan TBI Ball Screw and gear rack |
Max. Rapid Travel Rate | 50000mm/min |
Max. Working Speed | 30000mm/min |
Spindle Speed | 24000RPM |
Drive Motors | Leadshine Stepper motor and driver |
Working Voltage | AC380V/3PH/50Hz or 220V |
Command Language | G Code |
Operating System | DSP controller |
Software Compatibility | Option:Type3, Ucancam, Artcam, solidworks,etc. |
Running Environment | Temperature: 0℃~45℃
Relative Humidity: 30%~75% |
Detailed Images for Double heads two spindles Low price controller for cnc woodworking cnc router 1325 machine:

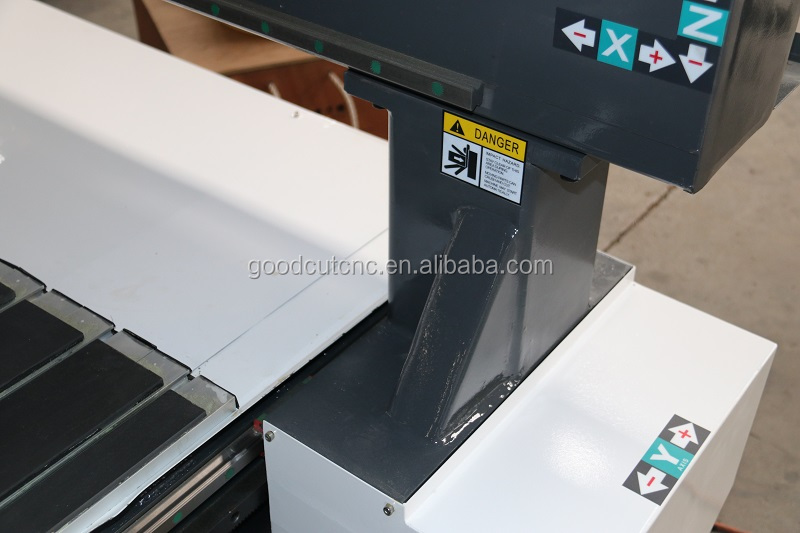

Gantry
The whole machine is welded with thick seamless steel structure, by seamless welding and hardening treatment, the stability is good, not easy to be deformed, guarantee it to be strong, reliable and durable, with large bearing capacity and long working life.. The machine adopts gantry movement, it can process any kinds of materials freely.

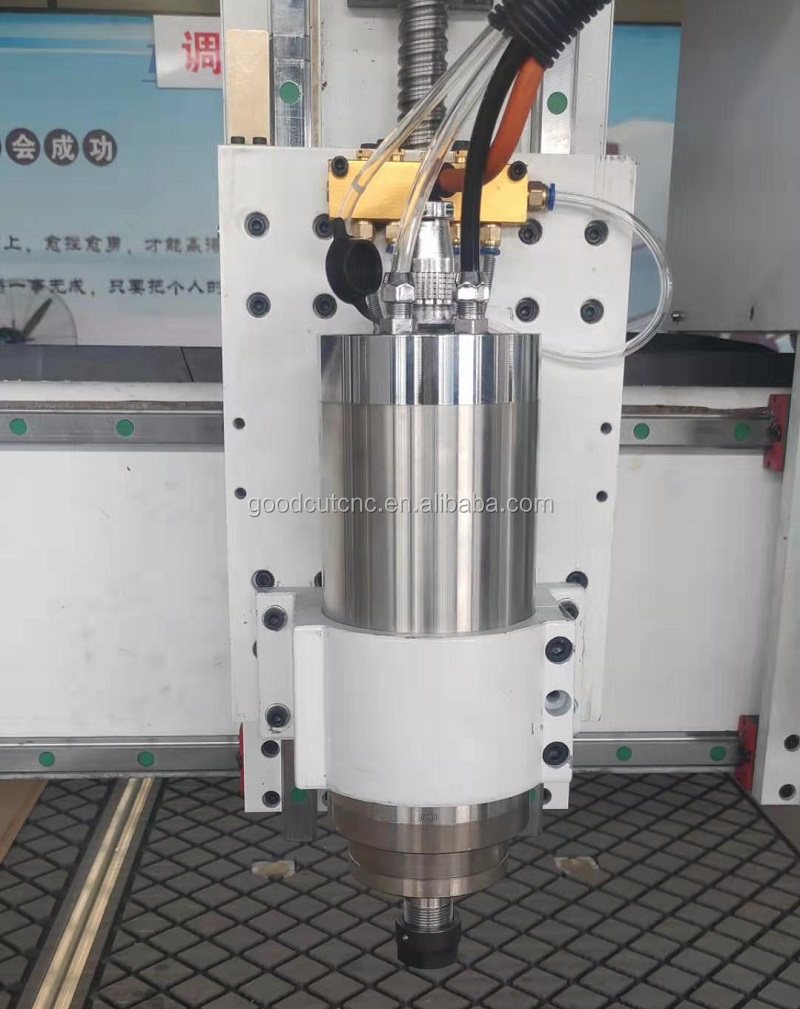

Water cooling spindle
We adopts Super water cooling spindle. that is pretty famous brand in the World.(More power of spindle is optional). low noise constant power and long time working.
The air cooling high-power spindle is used to achieve precision higher, longer service life, uniform speed, running stable, rapidly change the necessary props at random, saving the machining time and enhancing the working efficiency. Fully programmable speeds from 6000 to 24000 RPM
Heavy Duty Frame
The GoodCut's base frame is fabricated from heavy-duty tubular steel that is welded, precision machined and stress relieved so that the foundation remains true and steady over the operational life of the machine.

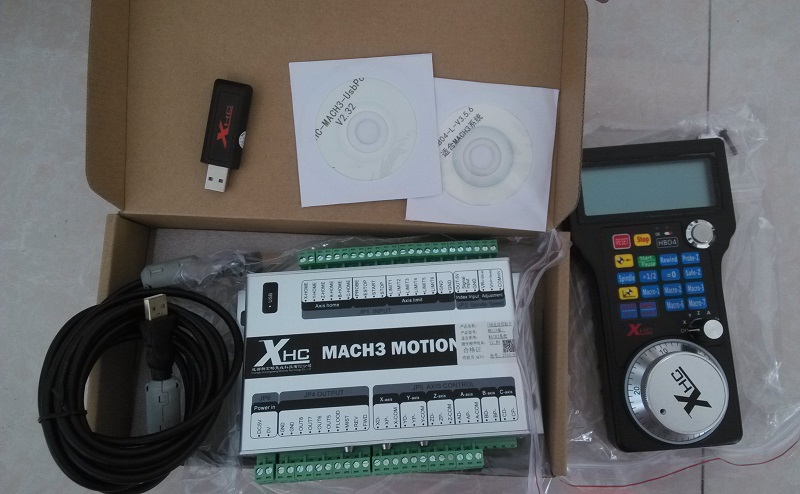

MACH 3 Controller
Mach3 is designed to control the CNC machine. The program is installed on a computer connected to the control machine. Both for professional and amateur use, so it is the most common software for CNC machines in the world. Using Mach3, it is possible to control the following types of machines: turning, milling, routers, laser and plasma plotter, engraving.

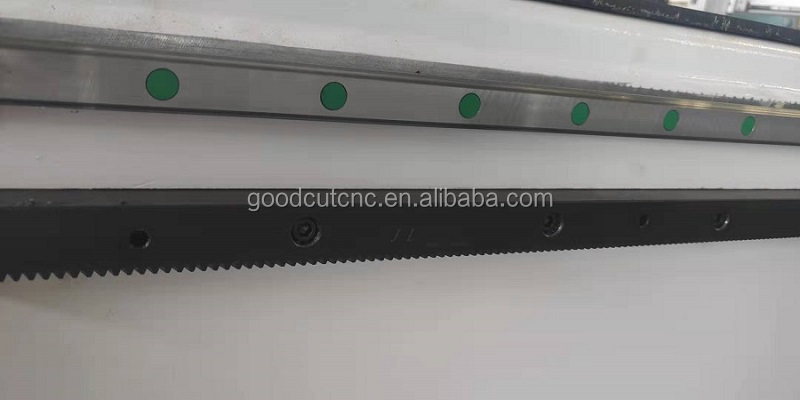

XY Helical rack and pinion
The CNC Router uses precision helical gear racks on the X and Y axes. The mounting of the rack is inverted to help keep dust and debris from building up on the drive system, this assures smooth motion and long term reliability. The precision gearbox is directly coupled to the stepper motor and pinion. This eliminates belt stretch inaccuracies assuring
high-speed machining while the system positions the spindle accurately.

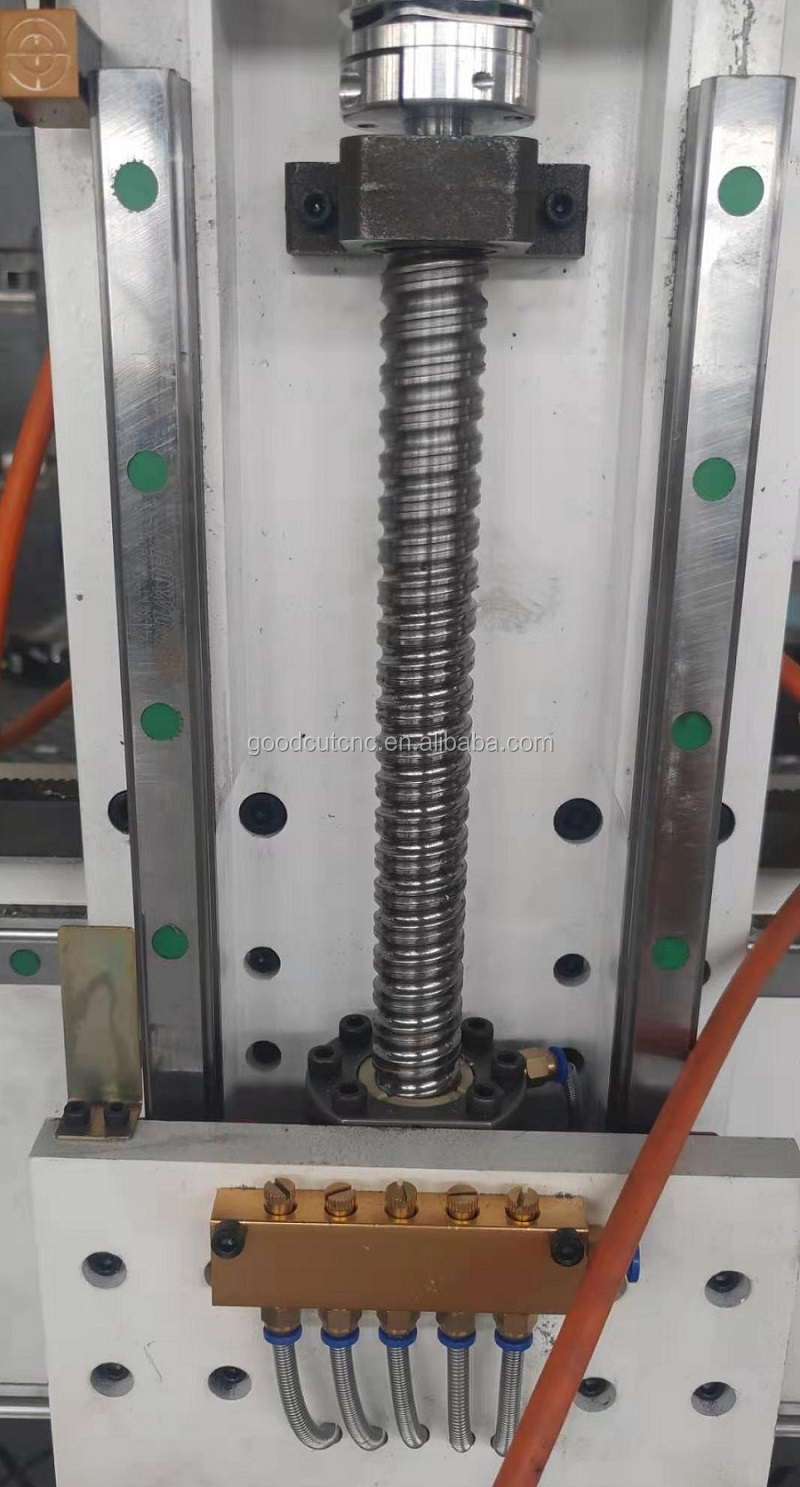

Z Axis TBI Ball screw
Z axis is with TBI ball screw to ensure the machine with higher precision and longer service life.
Drive Motors
Adopt high speed Leadshine stepper /Leadshine servo motor and drivers,and two motors for Y axis.max speed is 25mm/min.
Control Case
Independent control case, small interference for machine

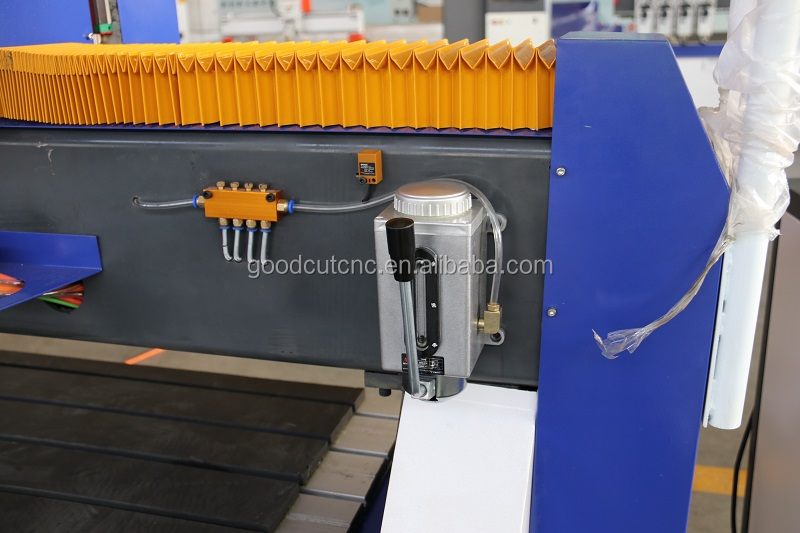

Oil Lubrication System
The machine comes the whole lubrication system to make sure all the transmission system will be well lubricated, which will make
the machine service life longer.

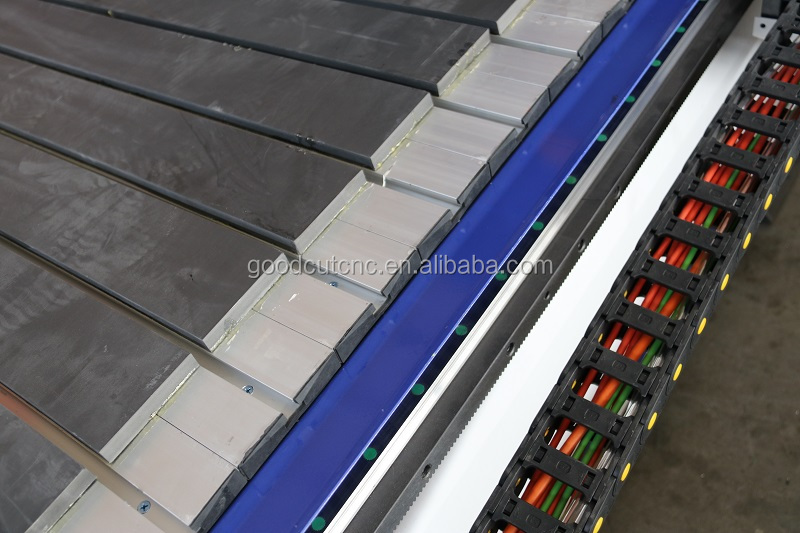

Aluminum PVC T-slot table
Work table with "T" -slot for mechanical fastening. The working table of the machine is made of panels of special reinforced aluminum separated by grooves to accommodate the clamps. A frequent step in the placement of the grooves makes it possible to fasten the workpiece of almost any size and does not require additional manipulation. The surface of the table, in the processing area, is covered with a special protective layer of wear-resistant plastic. In the event of errors and passing the tool below the workpiece zero point, the protective layer keeps the tool and the table from damage.

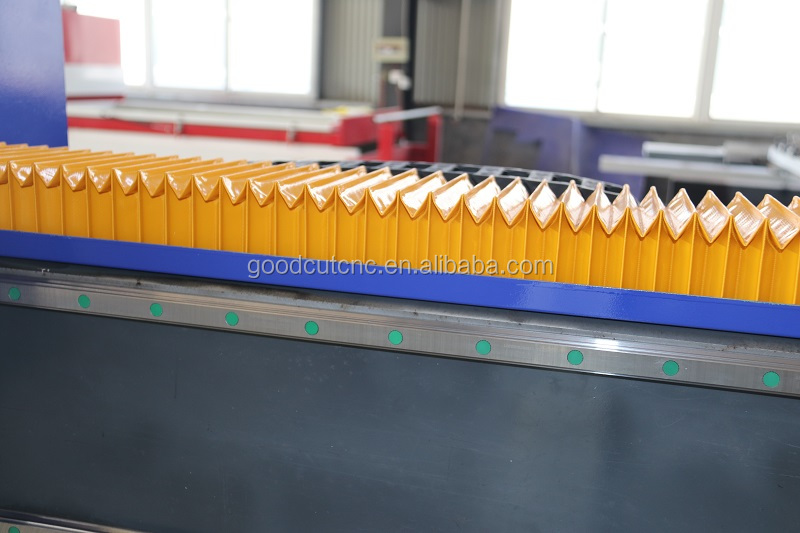

Special Dust Cover Design
Special dust cover design for protecting helical rack and pinion, long lifespan.
Other companys without this design

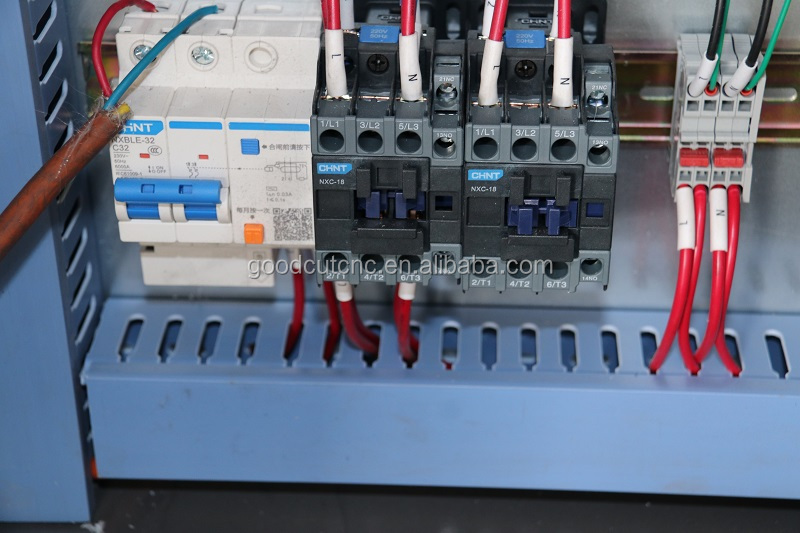

Orderly Wires
The wires of our machines are very orderly, the service lifetime is long, is not easy to break in the use process
Optional Parts:

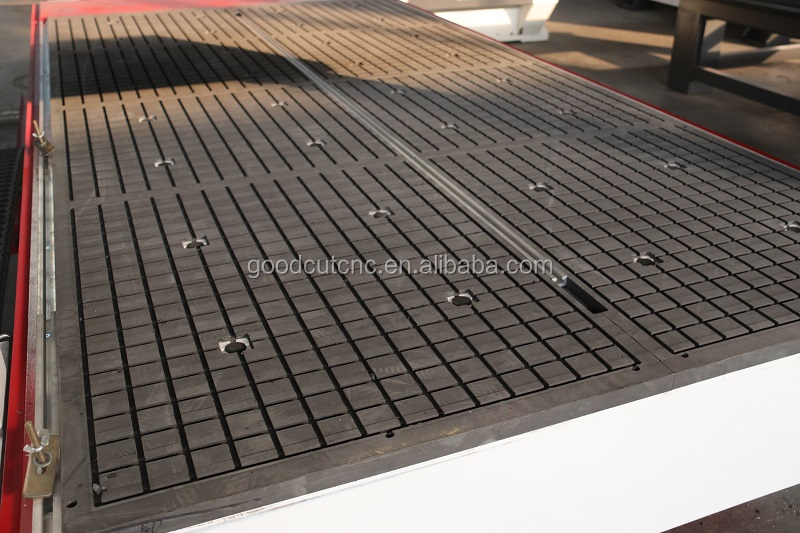

Vacuum Adsorb Table
Vacuum table with vacuum pump,can quickly and stably fix materials on the table for engraving,saving time and long service life.
Adopting the international asvanced technology of vacuum adsorption mesa, equipped with the strongly vacuum pump, the six zones design can adsorb the different area of the material strongly.

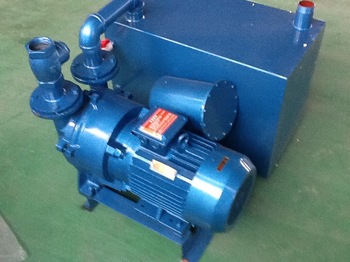

5.5kw/7.5kw Vacuum Pump
5.5kw/7.5kw dry Rotary Vane Vacuum Pump Comes standard with motor starter, vacuum gauge, primary and secondary filter, check valve and all necessary plumbing to connect to router.

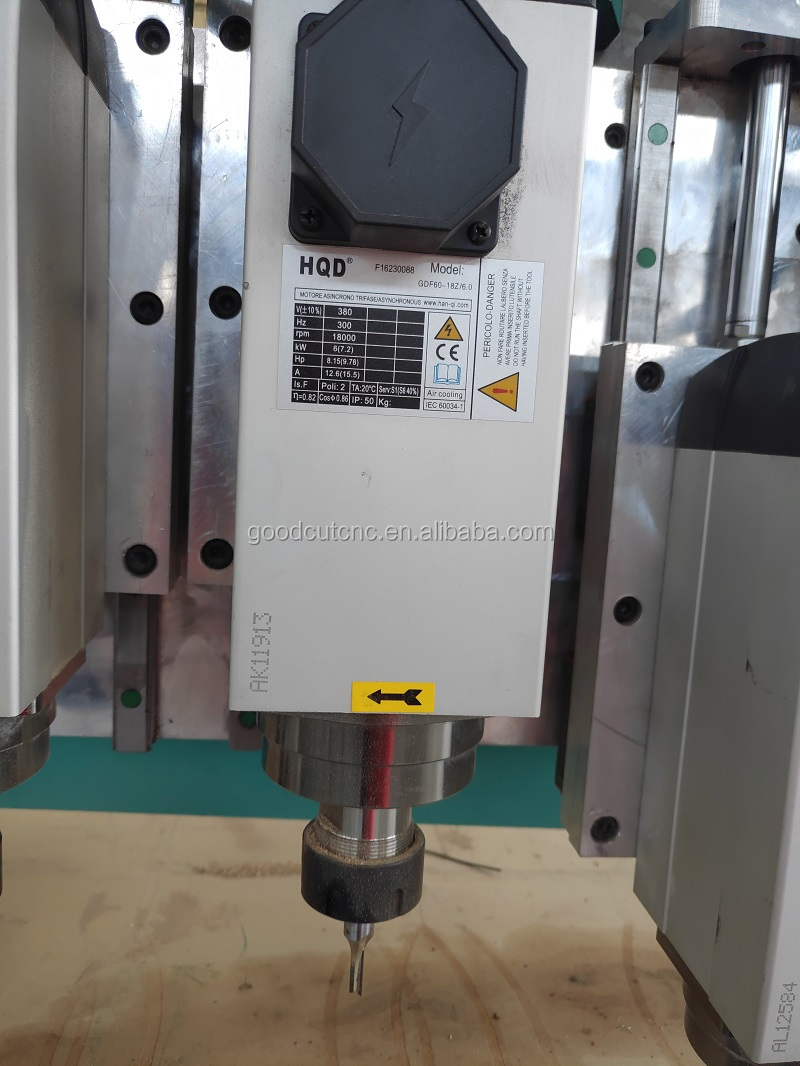

Air Cooling Spindle
We adopts Super air -cooling spindle. that is pretty famous brand in the World.(More power of spindle is optional). low noise constant power and long time working.
The air cooling high-power spindle is used to achieve precision higher, longer service life, uniform speed, running stable, rapidly change the necessary props at random, saving the machining time and enhancing the working efficiency

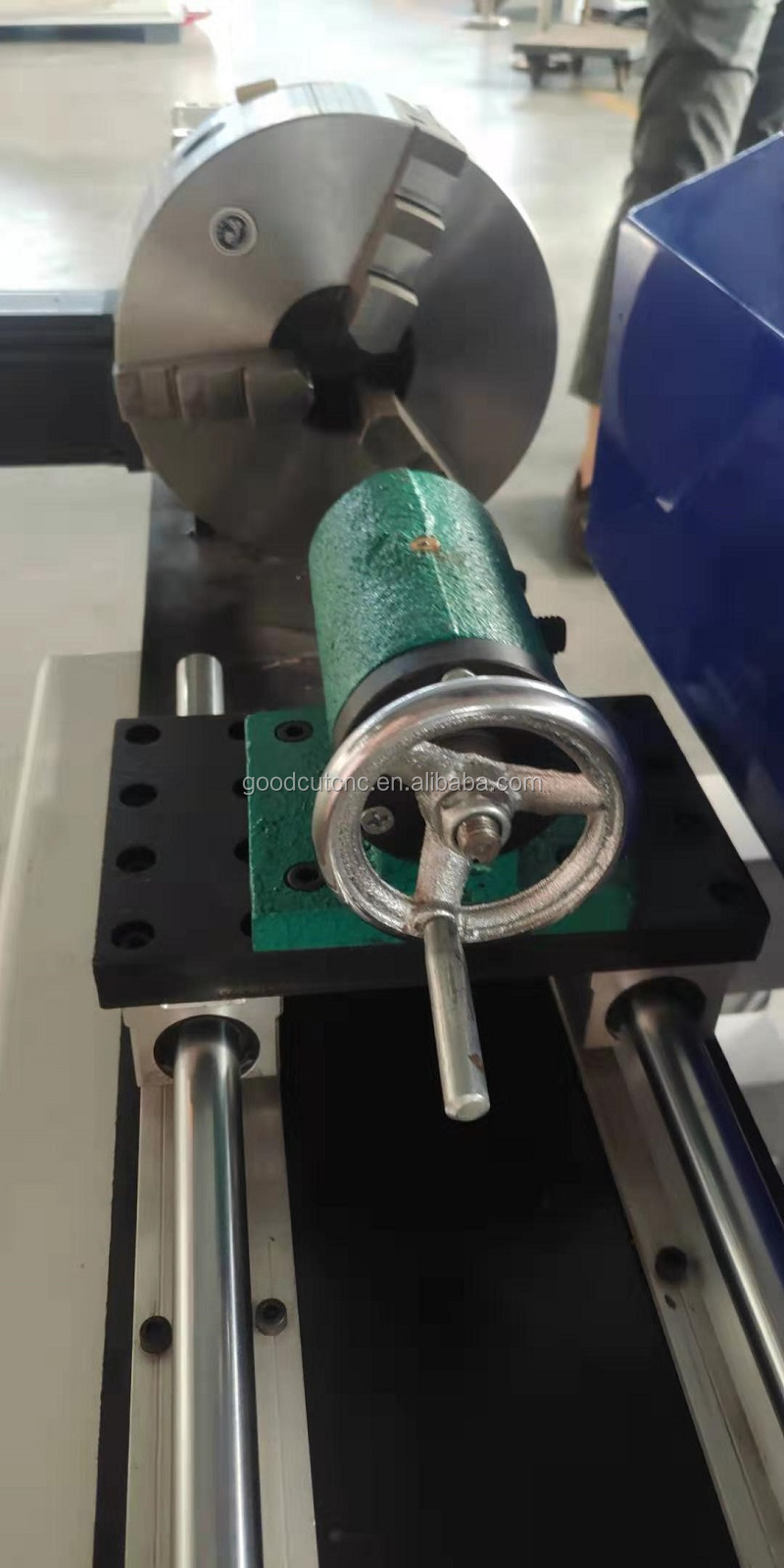

Rotary Axis
GoodCut's 4-Axis rotary table assembly comes complete with a 3-jaw chuck, tail stock, and linear guide track for easy tail stock movement and center alignment. The addition of GoodCut's 4-axis rotary table assembly adds greater functionality to the machine's
capabilities allowing for 4-axis cutting in both 2D and 3D carving and indexing functions.(GoodCut has 0-100mm, 0-150mm, 0-200mm,
0-250mm, 0-300mm diameter rotary axis for your choice)

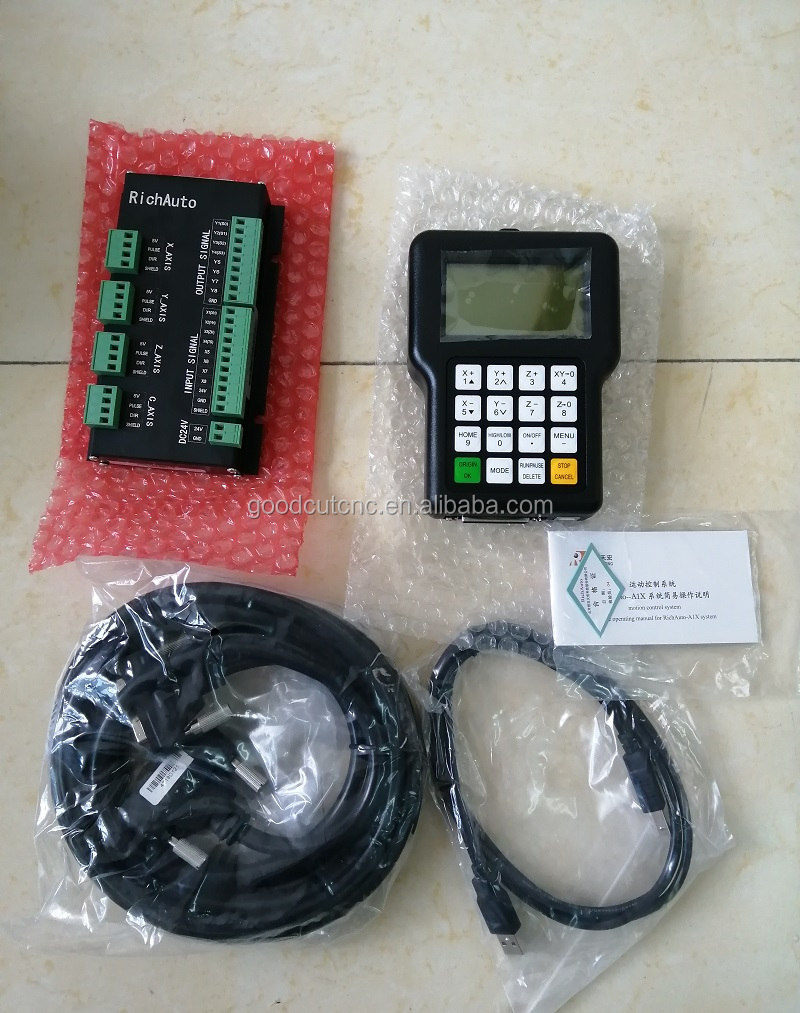

DSP Controller
DSP is a hand held, off line, and easy to operate controller. Not like Mach 3, it is no need to connect with a PC during the
machine working. It is easily operate and learned, especially for the freshman.

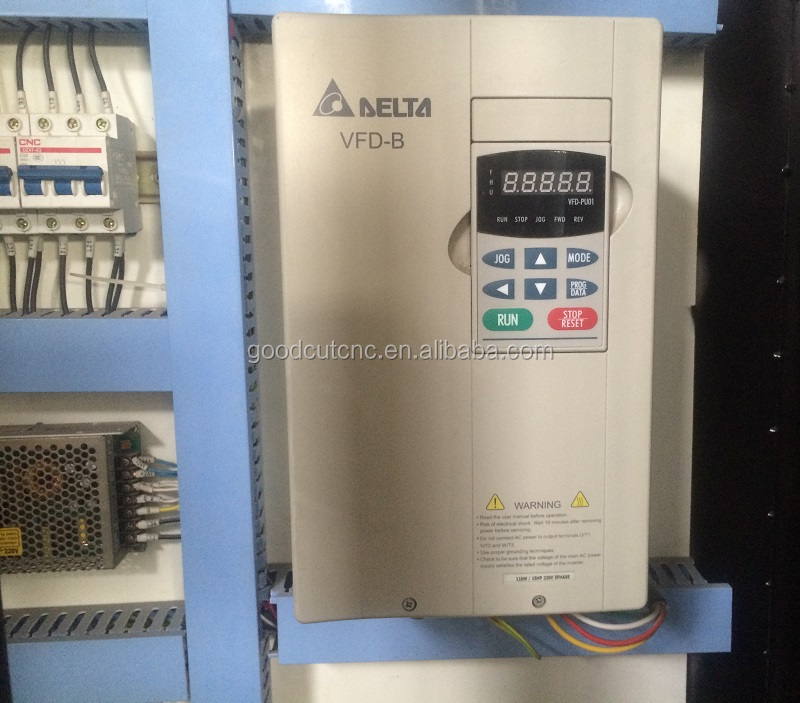

Inverter
High quality Delta inverter
Oil mist Coolant System
The Oil mist Coolant System is ideal for coolant tools for cutting metal. The unit's microdispenser delivers a very small amount
of high-performance vegetable-based lubricant to the cutting tool by atomizing the lubricant in a high-velocity air stream. The result is higher material removal rates, improved finish, tighter tolerances and increased productivity.

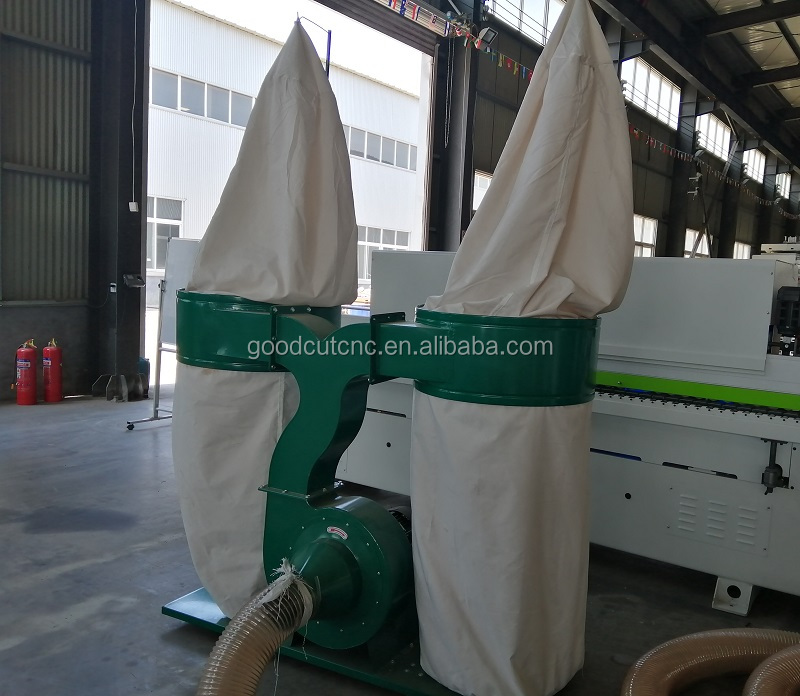

Dust collector
Big dust collector with 2 bags, which is powerful enough for collect the dust. It will make your workshop without dust.

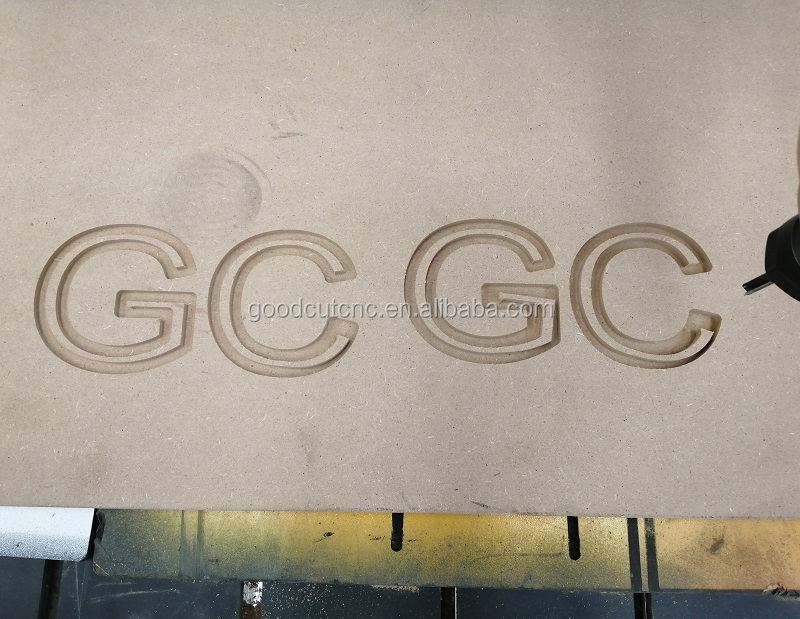

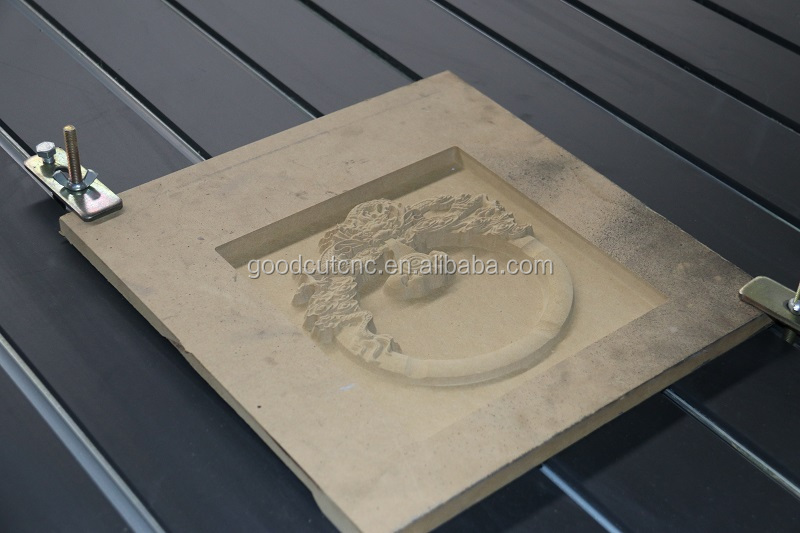

Sample & Application 1. Furniture industry: solidwood doors, composite doors, cabinet doors, interior doors, sofa legs, headboards, antique furniture
and superficial flower-shaped engraving of various plate-type furniture and disposable finishing of process.
2. Decorated industry: variety of decorations engraving process such as decorative murals, screens, decorative patterns,
three-dimensional wave boards, sound-absorbing panels and so on.
3. Advertising industry: engraving and making for acrylic cutting and engraving, acrylic plastic model making, badges and a
variety of logo signs.
4. Arts & crafts industry: sculpture making of arts & crafts such as process relief, shadow carving, craft ornaments, car
accessories and so on.
5. Musical instrument industry: headstock processing ,guitar semi-finished products processing, surface sculpture and
three-dimensional curved surface making of various musical instruments' decorative patterns.
Quality control
1. In the processing of production, our professional technical engineers inspect the processing to ensure the quality of products
2. Every machine must be tested before delivery for 72 hours , all of them are absolutely qualified. Machine has been adjusted before delivery
3. 12 months guarantee of the whole machine.Main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
Lifetime maintenance free of charge.
We will provide the consumable parts at an agency price when you need replacement.
